Why does my furnace shut off too soon?

A furnace stopping early is usually protecting itself from heat it cannot move. The filter is the classic cause — and timing tells more.

◷ 5 min read

Quick Answer

A furnace that stops early is usually protecting itself. If heat builds up faster than air can carry it away, a high-limit switch shuts the burner down to cool. Then it restarts and repeats. A clogged filter is the classic cause. A dirty flame sensor and thermostat placement can imitate it.

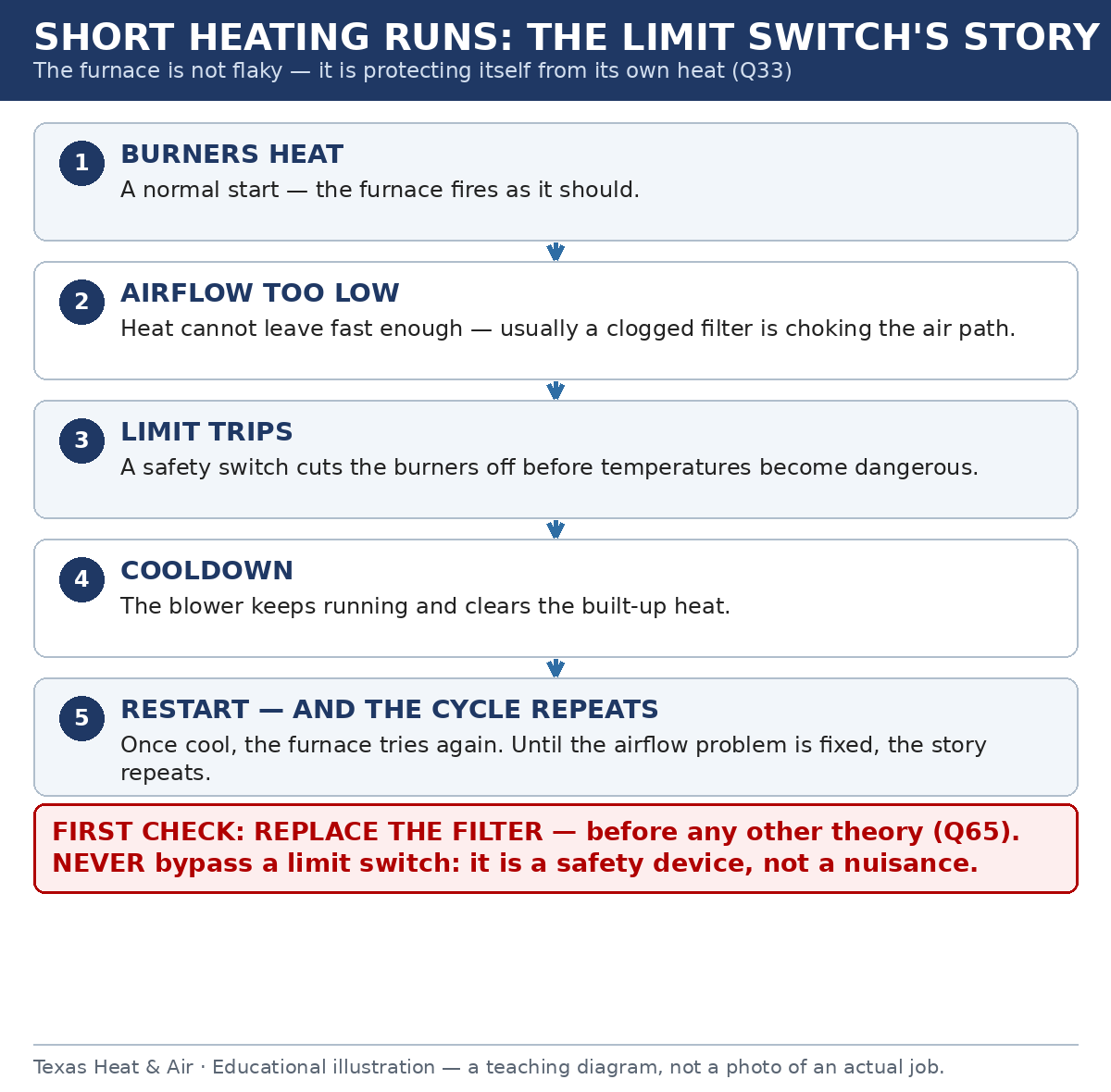

Five steps of a limit-switch cycle: burners heat normally; airflow is too low, usually from a clogged filter; the limit switch cuts the burners for safety; the blower cools the furnace; it restarts and the cycle repeats. First check: replace the filter. Never bypass a limit switch. — Why a furnace runs in short bursts: the limit switch's story.Tap or click to enlarge.

What you can safely check

Check the filter and replace it if dirty — first, before anything else.
Make sure supply vents are open and uncovered. The return vent is not blocked by furniture. Closing registers to "save heat" backfires: it starves the furnace of the airflow it needs.
Time the shutdowns: seconds after lighting, or minutes into the run? Note it for the technician.
Do not bypass or jumper the limit switch — ever. It is the only thing standing between restricted airflow and an overheated furnace.

What might be causing this

Your furnace has a built-in safety switch called a high-limit switch. Its job: if the inside of the furnace gets too hot, it shuts the burner down before damage or danger. The furnace cools. The switch resets. The burner relights. And if the problem is still there, the cycle repeats: a few minutes of heat, a stop, another try. That frustrating rhythm is the limit switch doing exactly what it was installed to do. The blower may keep running briefly after the burner cuts. It pushes the trapped heat out to cool the furnace down.

The heat builds up because air is not carrying it away fast enough. Heat that the blower fails to move into your rooms stays in the furnace. The classic cause is a clogged filter. It is the single most common reason for this pattern, and the easiest to fix. Closed or blocked supply vents do the same thing more slowly. So does furniture over a return vent, or a weakening blower (Q25, Q83).

The second suspect behaves slightly differently. The flame sensor is a small safety part that confirms the flame is lit. When it gets dirty, it can fail to sense a healthy flame. The furnace shuts down seconds after lighting — as if no flame existed. Same "won't stay on" complaint, different timing: limit trips happen after minutes of running. Flame-sensor shutoffs happen almost right away after ignition. That timing distinction is worth observing and reporting. It points the technician at the right suspect before a single panel comes off.

Two more causes round out the list. A thermostat mounted near a heat register can taste warm air early. It decides the house is warm enough and shuts the system down. While the rest of the house is still cold. If the short runs leave the thermostat's room comfortable and the others cold, suspect placement. And an oversized furnace can heat its space so fast that it reaches the set temperature in minutes, every time. That is short cycling. The system turning on and off in short bursts instead of running steady cycles. It is the heating twin of the cooling-season problem (Q14).

Because safety limits are involved, repeated short heating cycles deserve diagnosis rather than patience. A limit switch that trips daily is being asked to do a job your airflow should be doing. But start with the filter: it resolves this pattern more often than any other single act in heating.

Shutdown timing	Points toward
Seconds after the burner lights	Flame sensor not proving the flame
A few minutes into every run	Overheating limit — airflow (filter first)
Random short runs, thermostat's room warm, others cold	Thermostat placement sensing supply air
Short runs ever since installation, house warms in quick bursts	Oversized furnace (a design question)
Continues after a clean filter	Blower, limit, or control fault — diagnosis

When to call a professional

Call when a clean filter and open vents do not end the pattern. When shutdowns come seconds after lighting. A technician will measure airflow and furnace temperatures, test the limit switch and flame sensor. Confirm whether the furnace is protecting itself from a real cause or tripping early on a failing part.

What happens next

Book a diagnostic visit. Ask Texas Heat & Air what you will get in writing, and what your approval covers, before you book. Bring your shutdown timing. Minutes versus seconds splits the diagnosis in half before the visit starts.

Texas Heat & Air next step

Filter changed and it still quits early? Call Texas Heat & Air at (682) 438-8127 with your shutdown timing noted.

Go deeper:this question belongs to the full guideFurnaces, Heat Pumps, and Winter Heating in North Texas.

Sources

https://www.energystar.gov/saveathome/heating-cooling/maintenance-checklist — supports high-limit protection, airflow causes of overheating, flame-sensor behavior, and the maintenance checks involved
